Description
GAIA is perfect for lighting office, hospital, school and retail areas with its perfect body design, smooth body finish and homogeneous light emitted from opal diffuser providing glare control. It can be produced in different wattage and sizes, but can also be produced in accordance with different ceiling structures.
- Range of Products
- Product Specifications
- Optical/Elect. Specifications

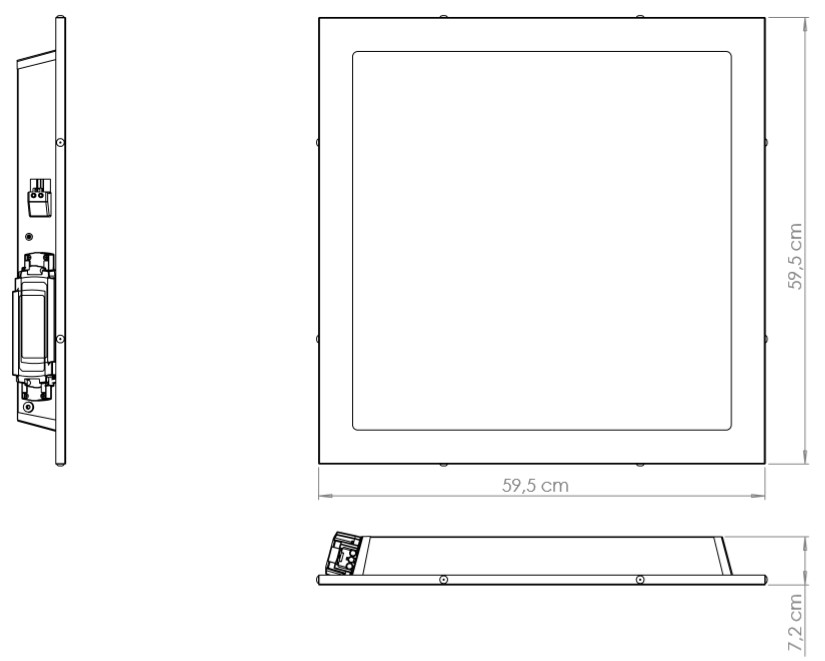

- Drawing and Dimensioning
- Assembly Options
- Other Specifications
- Optional Specifications
| Product Code | Consumption Power (W) | Armature Lumen(lm) | Armature Productivity(lm/W) | Colour Temperature |
|---|---|---|---|---|
| 3501 04 00203 | 28 W | 3578 lm | 127.79 lm/W | 4000K |
| 3501 04 00703 | 28 W | 3578 lm | 127.79 lm/W | 4000K |
| 3501 04 00503 | 28 W | 3578 lm | 127.79 lm/W | 4000K |
| 3501 04 00903 | 28 W | 3578 lm | 127.79 lm/W | 4000K |
| Product Code | Body Materiel | Body Colour | Diffuser | Ceiling Type | IP Class | Light Source | Area of Use |
|---|---|---|---|---|---|---|---|
| 3501 04 00203 | Sheet Metal | White | Diffuser | Plaster Ceeling | IP40 | LED | Office, Meeting Room, Shop, Hotel, School, AVM |
| 3501 04 00703 | Sheet Metal | White | Diffuser | Rockwool Ceeling | IP40 | LED | |
| 3501 04 00503 | Sheet Metal | White | Diffuser | Clip-in Ceeling | IP40 | LED | |
| 3501 04 00903 | Sheet Metal | White | Diffuser | Surface Mounted | IP40 | LED |
| Product Code | Consumption Power (W) | Armature Lumen(lm) | Armature Productivity(lm/W) | Optical Angle (º) | Colour Temperature(K) | Color Rendering Index (CRI) | Input Voltage(V) | Input Frequency(Hz) | Power Factor |
|---|---|---|---|---|---|---|---|---|---|
| 3501 04 00203 | 28 W | 3578 lm | 127.79 lm/W | 120° | 4000K | >0.80 | 220VAC | 50Hz | >0.90 |
| 3501 04 00703 | 28 W | 3578 lm | 127.79 lm/W | 120° | 4000K | >0.80 | 220VAC | 50Hz | >0.90 |
| 3501 04 00503 | 28 W | 3578 lm | 127.79 lm/W | 120° | 4000K | >0.80 | 220VAC | 50Hz | >0.90 |
| 3501 04 00903 | 28 W | 3578 lm | 127.79 lm/W | 120° | 4000K | >0.80 | 220VAC | 50Hz | >0.90 |
| Product Code | Lenght(mm) | Width(mm) | Height(mm) |
|---|---|---|---|
| 3501 04 00203 | 595 mm | 595 mm | 72 mm |
| 3501 04 00703 | 595 mm | 595 mm | 72 mm |
| 3501 04 00503 | 595 mm | 595 mm | 100 mm |
| 3501 04 00903 | 595 mm | 595 mm | 78 mm |
| Product Code | LED Chip Brand | Driver Brand | LED Lifespan (Hour) | Service Temperature Range(ºC) |
|---|---|---|---|---|
| 3501 04 00203 | Samsung | SMB | 50000 | (-20°C / +50°C) |
| 3501 04 00703 | Samsung | SMB | 50000 | (-20°C / +50°C) |
| 3501 04 00503 | Samsung | SMB | 50000 | (-20°C / +50°C) |
| 3501 04 00903 | Samsung | SMB | 50000 | (-20°C / +50°C) |
| Product Code | Colour Temperature(K) | Optical Angle Option(º) | Body Colour | Emergency Kit Compatibility | DALI Compatibility | Product Accessory |
|---|---|---|---|---|---|---|
| 3501 04 00203 | 3000K – 4000K – 5000K – 6500K | 120° | RAL Colors | 1 Hour-3 Hour | Yes | Yes |
| 3501 04 00703 | 3000K – 4000K – 5000K – 6500K | 120° | RAL Colors | 1 Hour-3 Hour | Yes | Yes |
| 3501 04 00503 | 3000K – 4000K – 5000K – 6500K | 120° | RAL Colors | 1 Hour-3 Hour | Yes | Yes |
| 3501 04 00903 | 3000K – 4000K – 5000K – 6500K | 120° | RAL Colors | 1 Hour-3 Hour | Yes | Yes |
